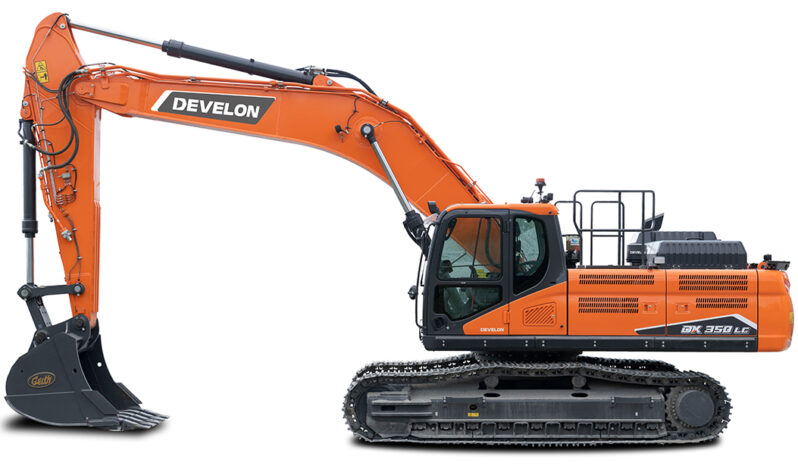

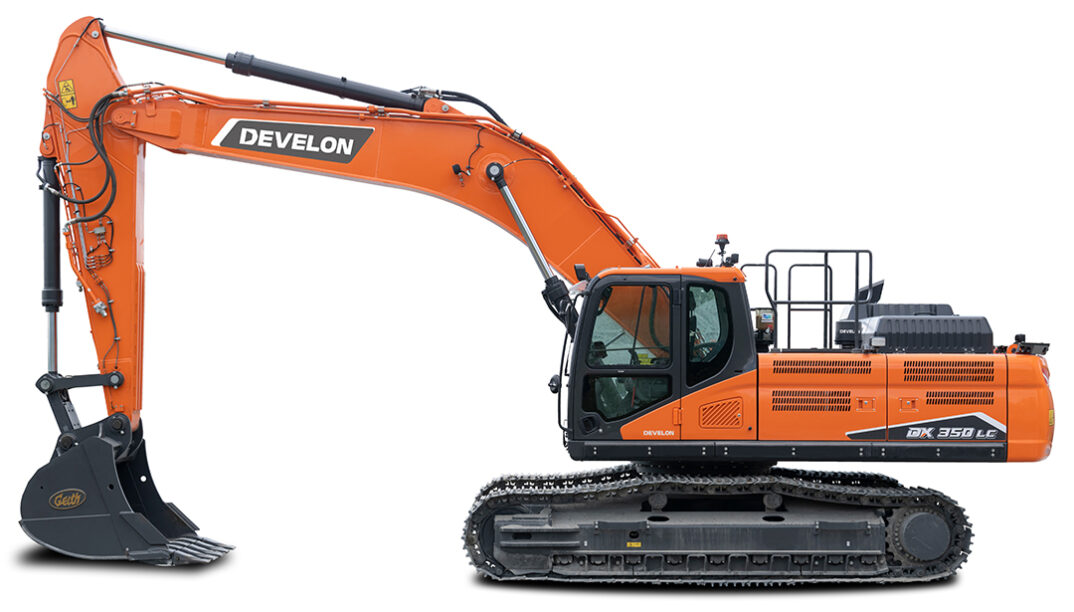

New Develon DX350LC-7K Tracked Excavators

The DX350LC-7K model features a new generation engine to meet the latest Stage V engine emission regulations. It is a new solution without exhaust gas recirculation (EGR) to increase the quantity of air during combustion - the temperature during combustion is therefore higher and the amount of emission particles are reduced as much as possible. Thanks to the new technology, the diesel particle filter (DPF) requires really low maintenance. Operating weight 36.100 kg Engine DL08V Engine power 213 kW (290 HP) @ 1800 rpm (SAE J1995) Main pumps max flow 2 x 350 l/m Number of cylinders 6 Travel speed 3.4 / 5.6 km/h Maximum traction 37.9 t Buckets 1.25 – 2.32 m³ Tail swing radius 3530 mm Bucket digging force 25.9 t Arm digging force 23.3 t Max. digging reach 12165 mm Max. digging depth 8125 mm Max. digging height 13175 mm
