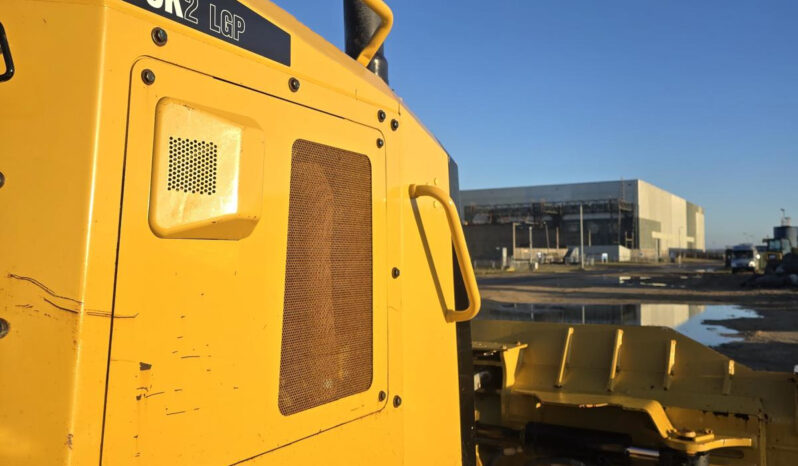

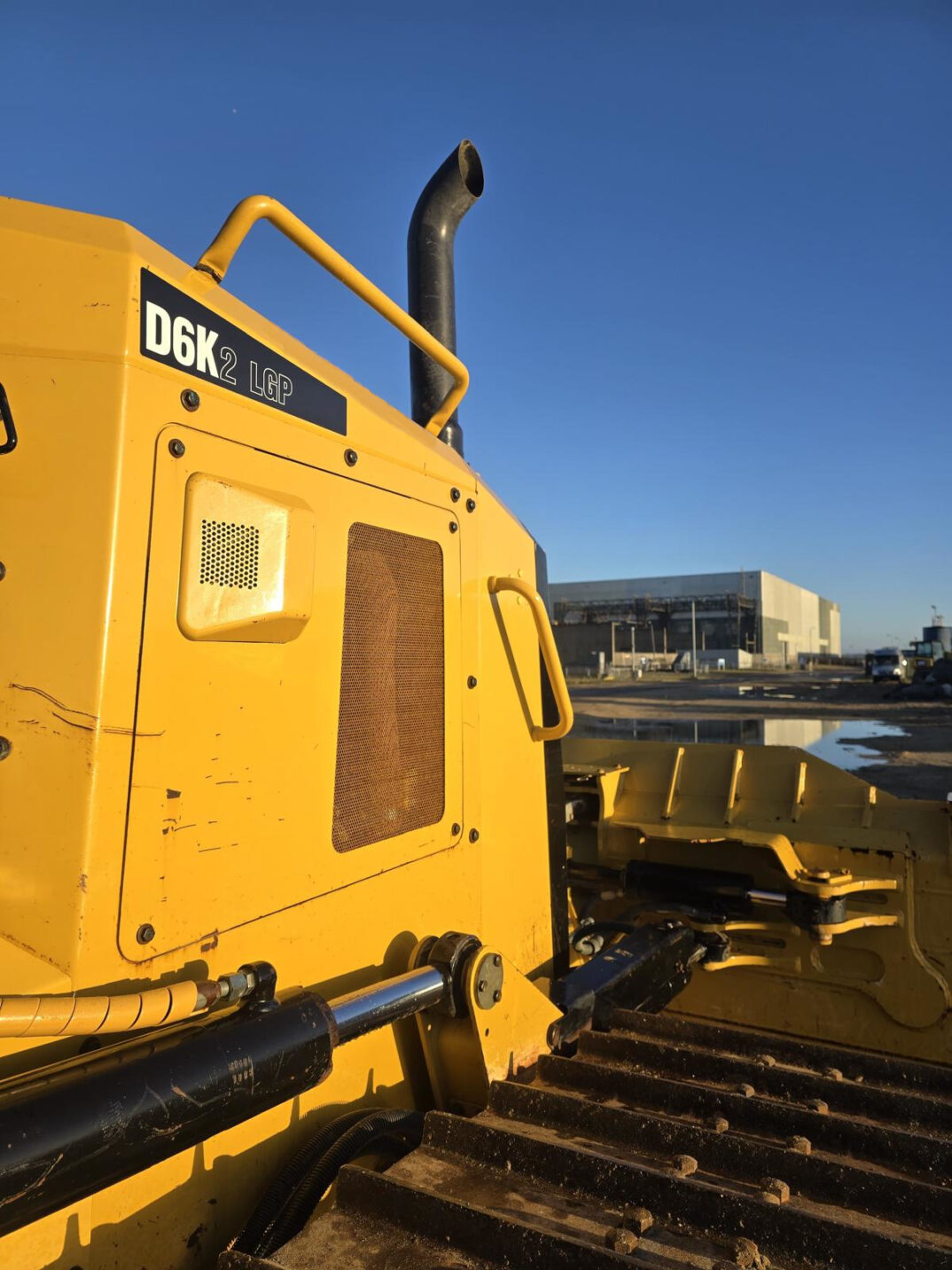

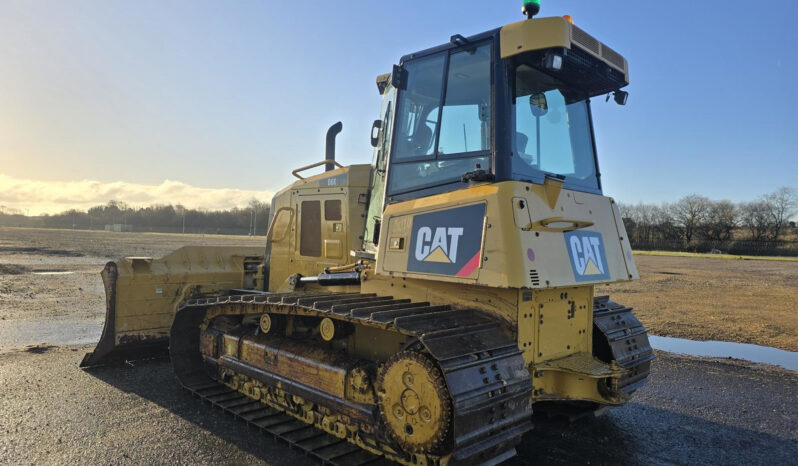

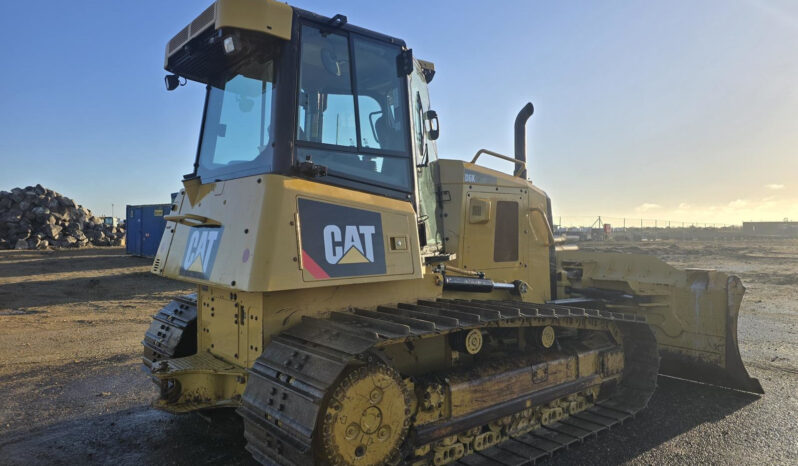

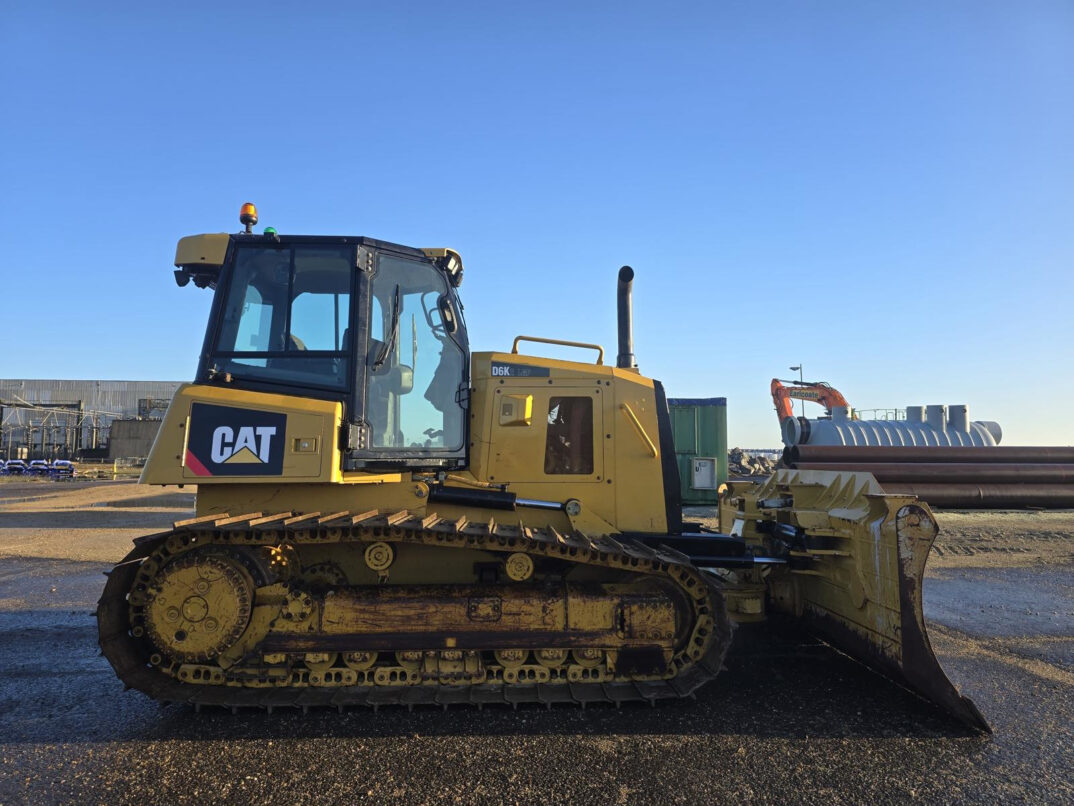

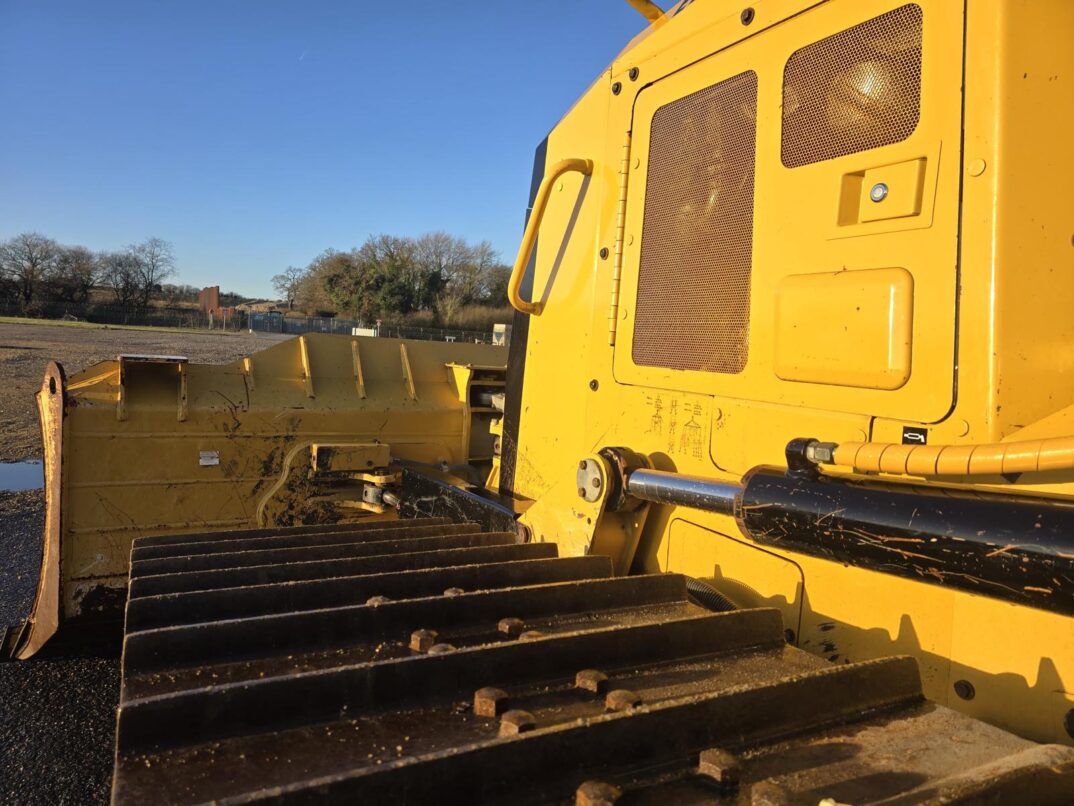

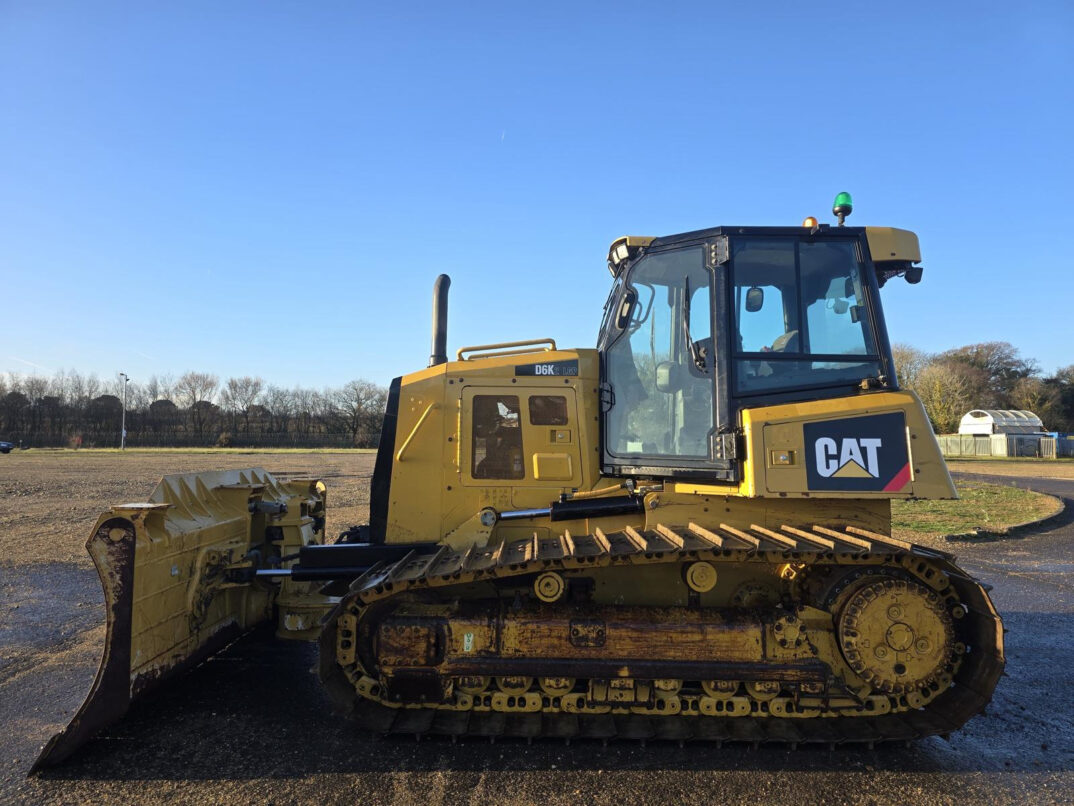

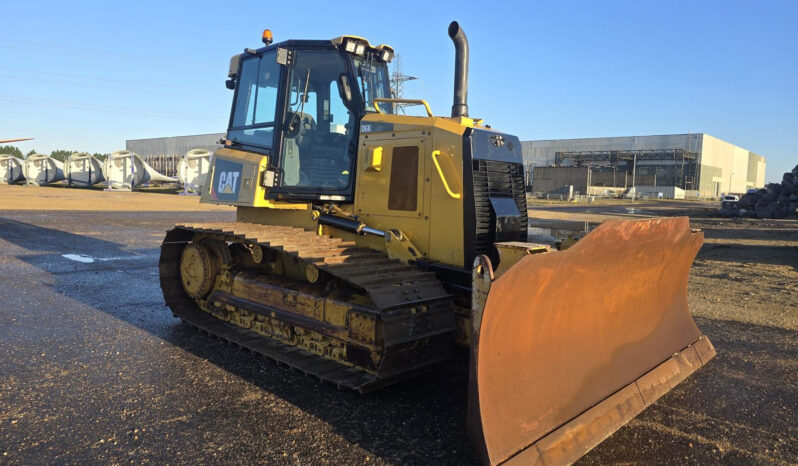

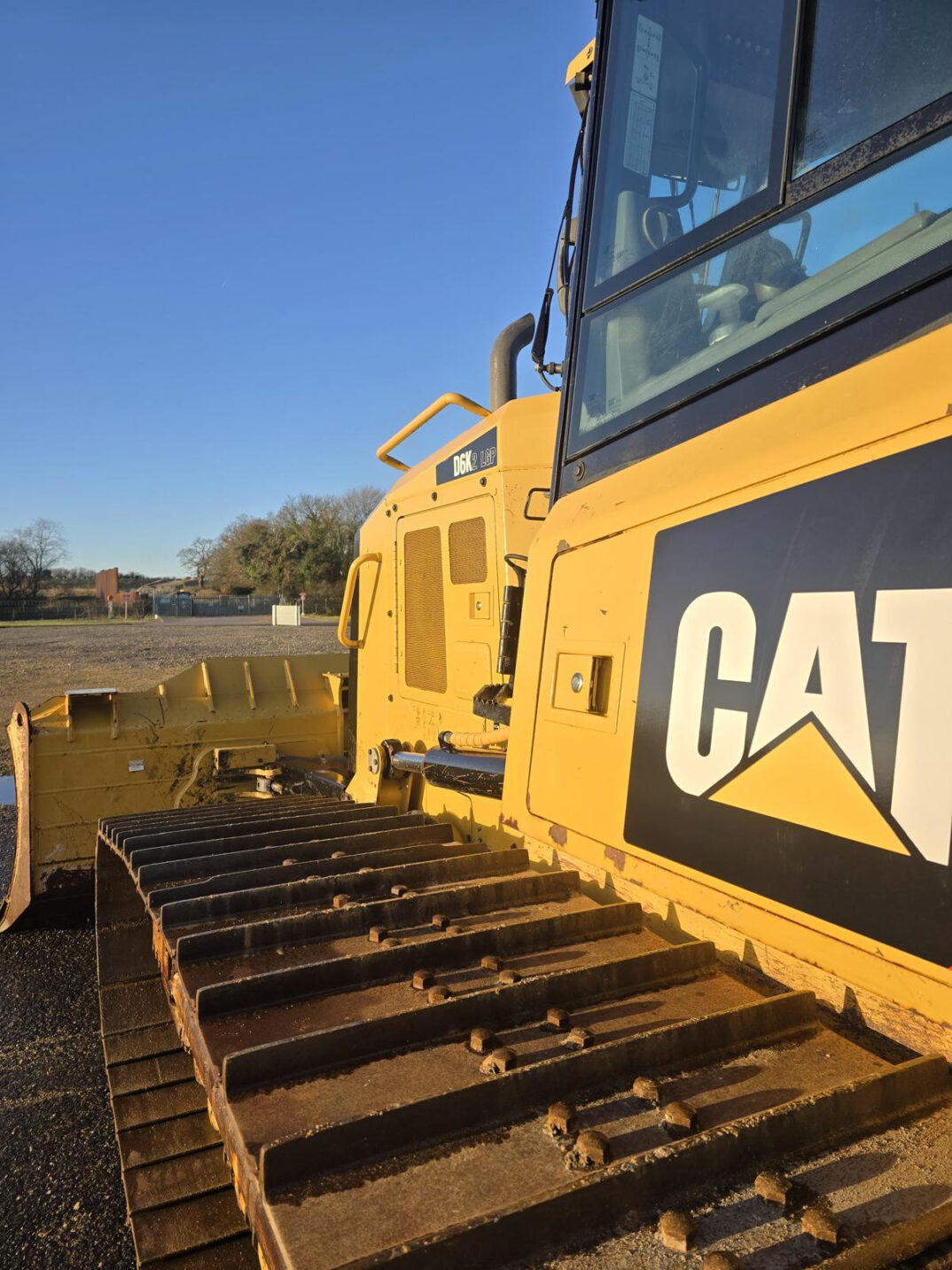

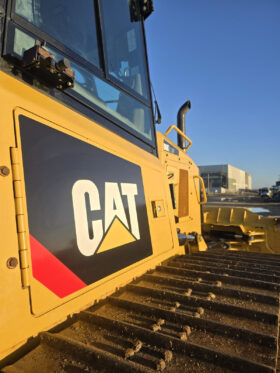

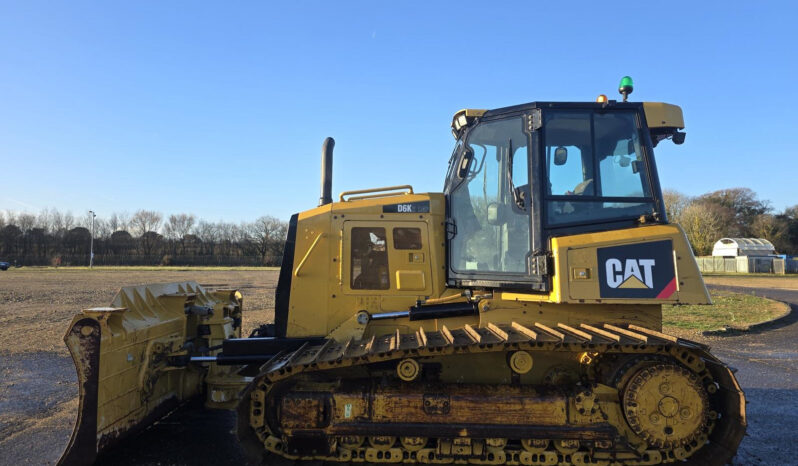

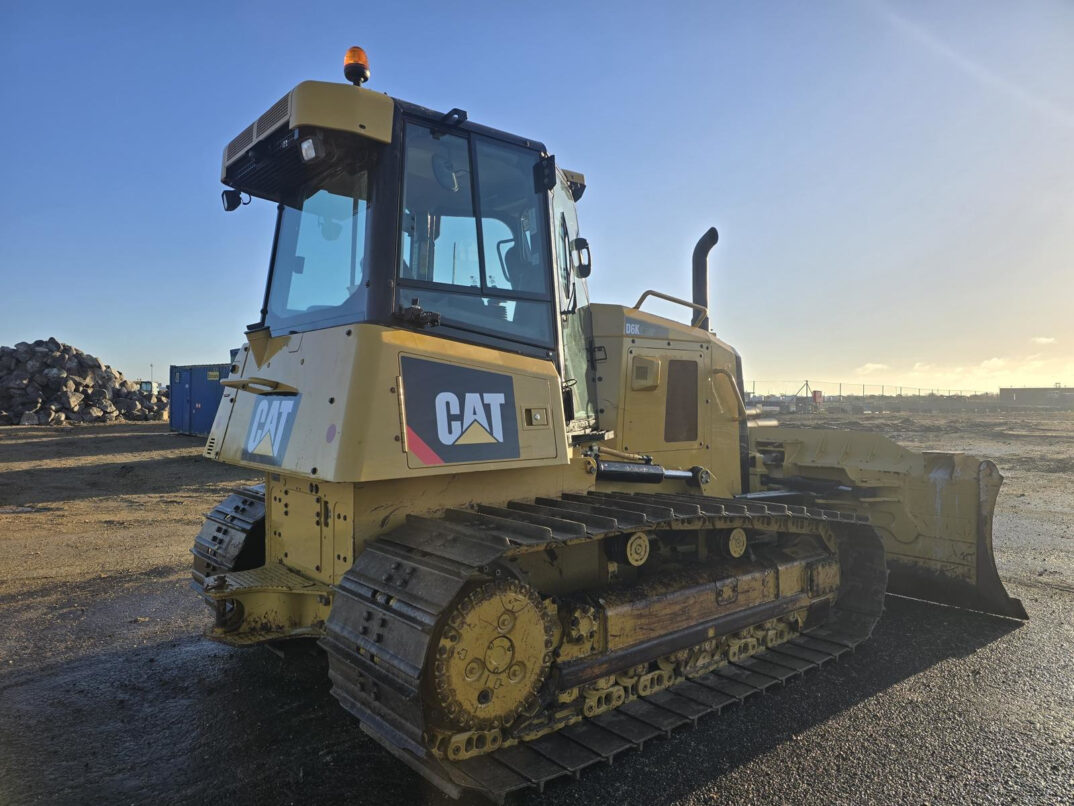

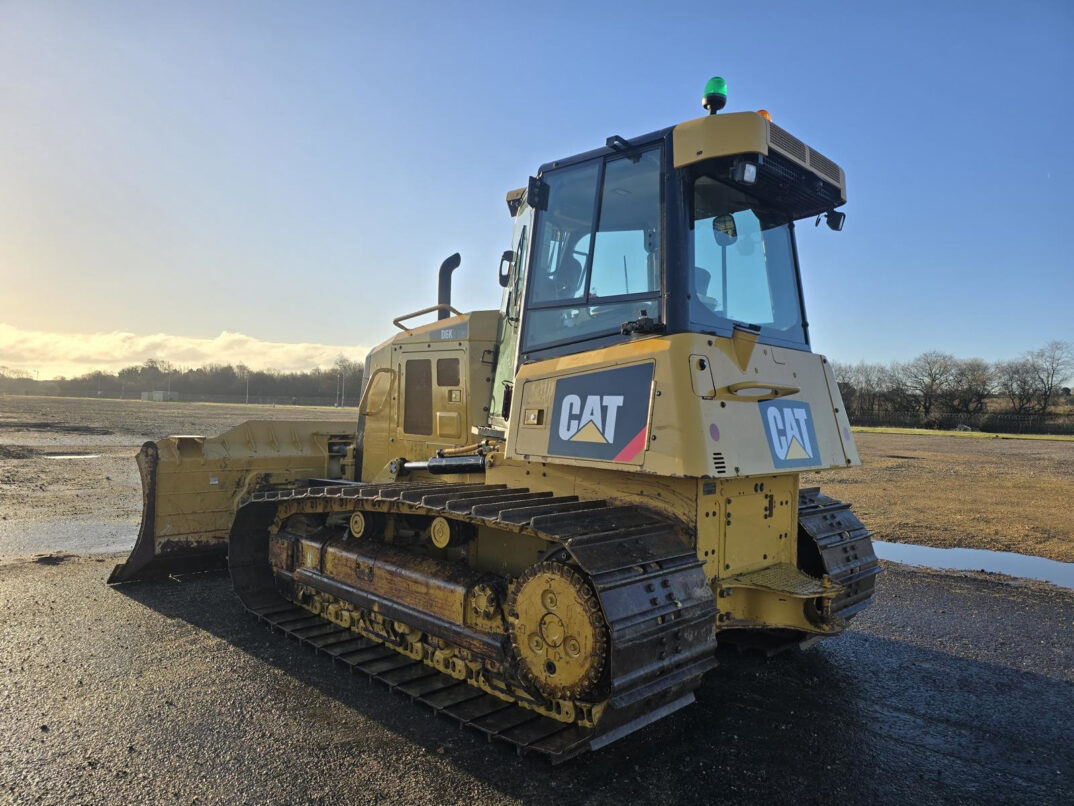

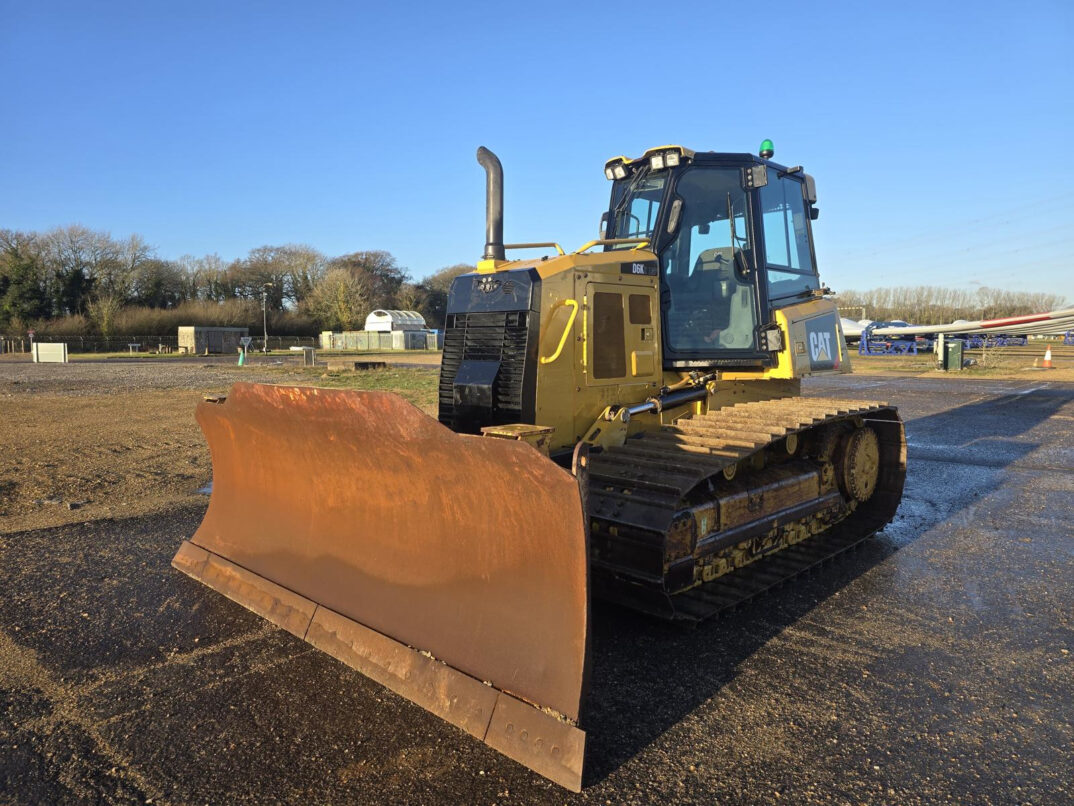

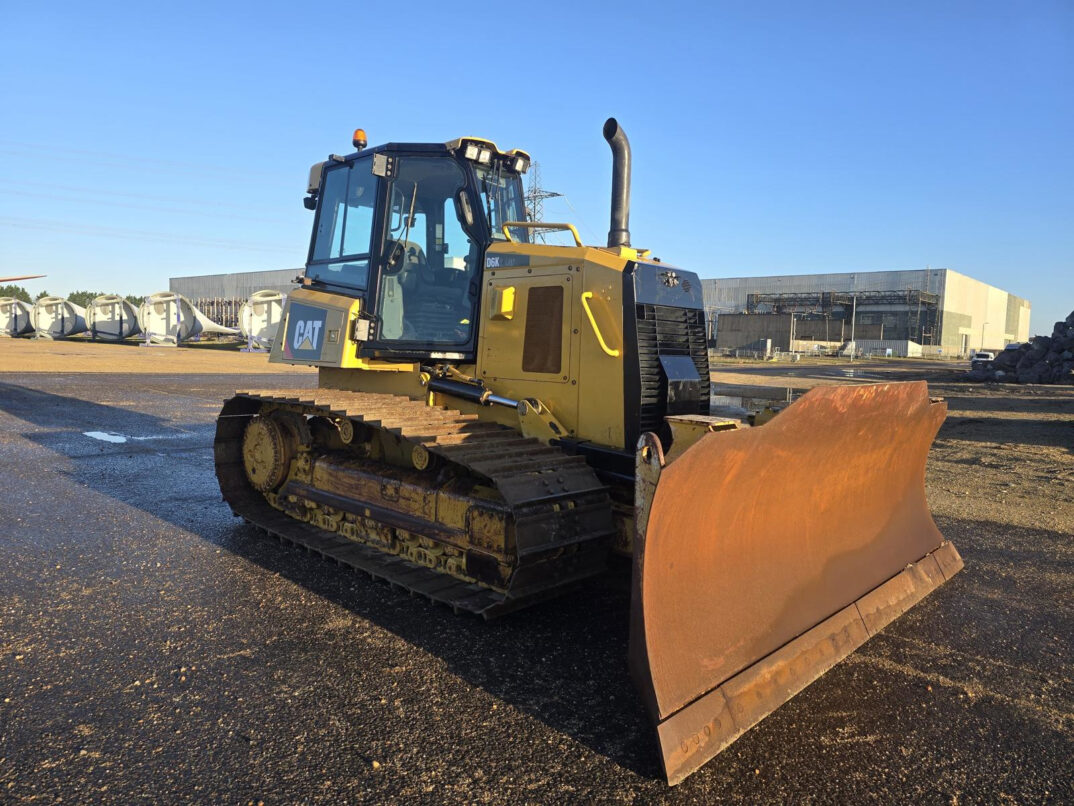

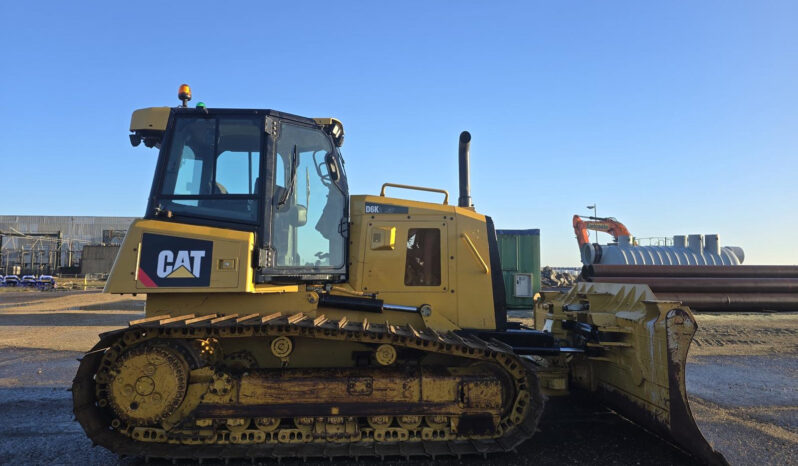

CAT D6K2 LGP Hours: 3537
PAT blade, rippers available at an additional cost.
ENGINE
Blow by- Minimal to none- - - -
Knocking- No knocking- - - -
Air cleaners- Good- - - -
Any smoke- Minimal to none- - - -
Oil or fuel leaks- None visible- - - -
General running condition- Good- - - - - - - TRANSMISSION
Gear change- HST works well- - - -
Steering- Responsive- - - -
Oil leaks- None visible- - - -
Is the transmission noisy?- No- - - -
Torque converter- Good- - - -
Controls- Good controls- - - -
General running condition- Moves well- - - - - -
UNDERCARRIAGE
Shoe width- 758mm- - Shoe height- 43mm, 70%- - - - Shoes - any wear in trailing edge?- Minimal- - - - Rail height- 107mm, 95%- - - -
Any signs of link failure?- No- - - -
Average diameter of pins and bushings- 60mm, 95%- - - -
Have pins been turned on chains?- No- - - -
Sprockets- 75mm gape, 15mm tips, good edges. 80%- - - - - -
TOP ROLLERS - UNDERCARRIAGE
Left side 1st roller- 166mm x 167mm, 95%- - - -
Left side 2nd roller- 166mm x 166mm, 95%- - - -
Right side 1st roller- 166mm x 166mm, 95%- - - -
Right side 2nd roller- 166mm x 166mm, 95%- - - - - - - BOTTOM ROLLERS - UNDERCARRIAGE
Roller 1- 173mm x 174mm, 85%- - - - Roller 2- 174mm x 174mm, 85%- - - - Roller 3- 174mm x 174mm, 85%- - - - Roller 4- Visual only, 85%- - - - Roller 5- 175mm x 174mm, 85%- - - - Roller 6- 174mm x 175mm, 85%- - - -
Roller 7- 175mm x 175mm, 85%- - - - Roller 8- Visual only, 85%- - - - - -
CAB
Cab mounts- any wear?- Minimal- - - - Any wiring for laser system- Yes- - - -
Back up alarm- Loud and clear- - - - Battery isolator switch- Fitted, manual- - - - Lights- All working- - - -
Wipers- All working- - - -
Heater- Good heat- - - - A/C- Nice and cold- - - - Seat condition- All working, small burn- - - - Cladding condition- Good condition- - - - Floor mat condition- No wear or tears- - - - Seat belt- working, no damage- - - - Mirrors- Rear view only- - - - Horn- Loud and clear- - - - Cab mounts- Good mounts- - - - Cab glass condition- good- - - - Cab glass have any cracks?- No damage- - - - Any perspex fitted?- None fitted- - - -
Steps and grab handles secure?- Fitted and undamaged- - - - - -

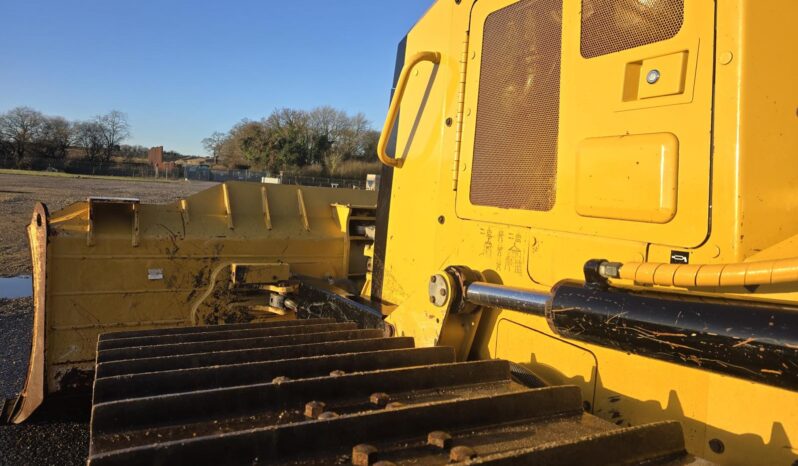

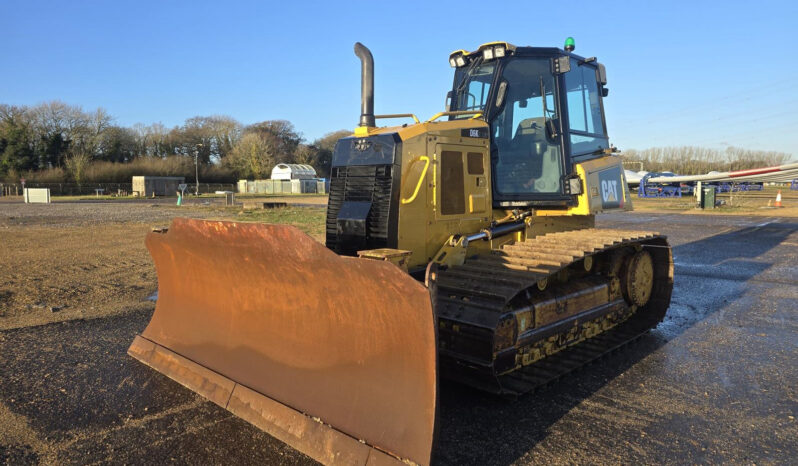

Blade
Blade width- 3670mm- - Blade height- 1310mm- - Main lift rams, wear- L/H: 2mm x 3mm, R/H: 2mm x 2mm- - Pitch rams, wear- L/H: 3mm x 3mm, R/H: 4mm x 3mm- - Ball joint, wear- 2-3mm- - Tilt ram, wear- 1mm x 1mm- - C-Frame, wear- 3mm x 3mm- - Equaliser bar, wear- 1mm x 2mm x 1mm- - Face / Moldboard- Good thickness- - - - Spill rack condition- Straight, undamaged- - - -
Cutting edges condition- 50mm left- - - - Have cutting edges been turned?- No- - General blade condition- Good- - - - - -

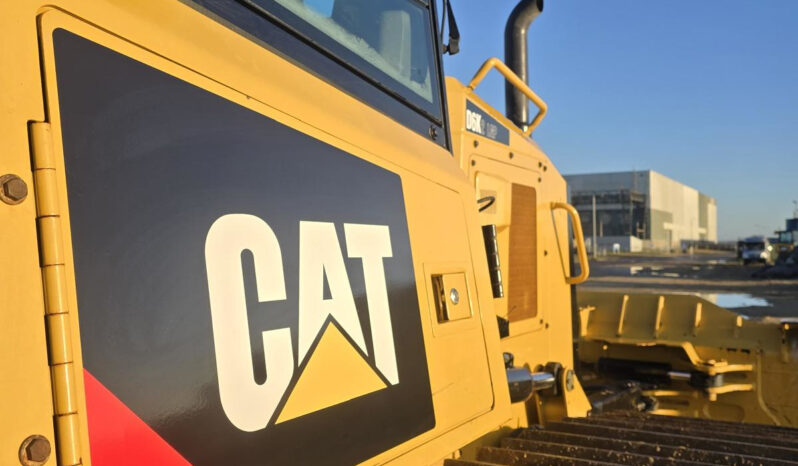

PAINT & DECALS
Any damage to panels- No damage- - - - Paint condition- Fair condition- - - - Any areas repainted- No- - - -
Condition of decals- To be replaced- - - -
DIMENSIONS- Length
Width
Height- Measurements with blade straight- 4900mm
3670mm
2960mm- Measurements with blade turned- 5700mm
3300mm
2960mm- Measurement from outside to outside of tracks-
2765mm- - Measurements with blade straight- Length: 4900mm
Width: 3670mm
Height: 2960mm- Measurements with blade turned- Length: 5700mm
Width: 3300mm
Height: 2960mm- Measurement from outside to outside of tracks- Length:
Width: 2765mm
Height:
