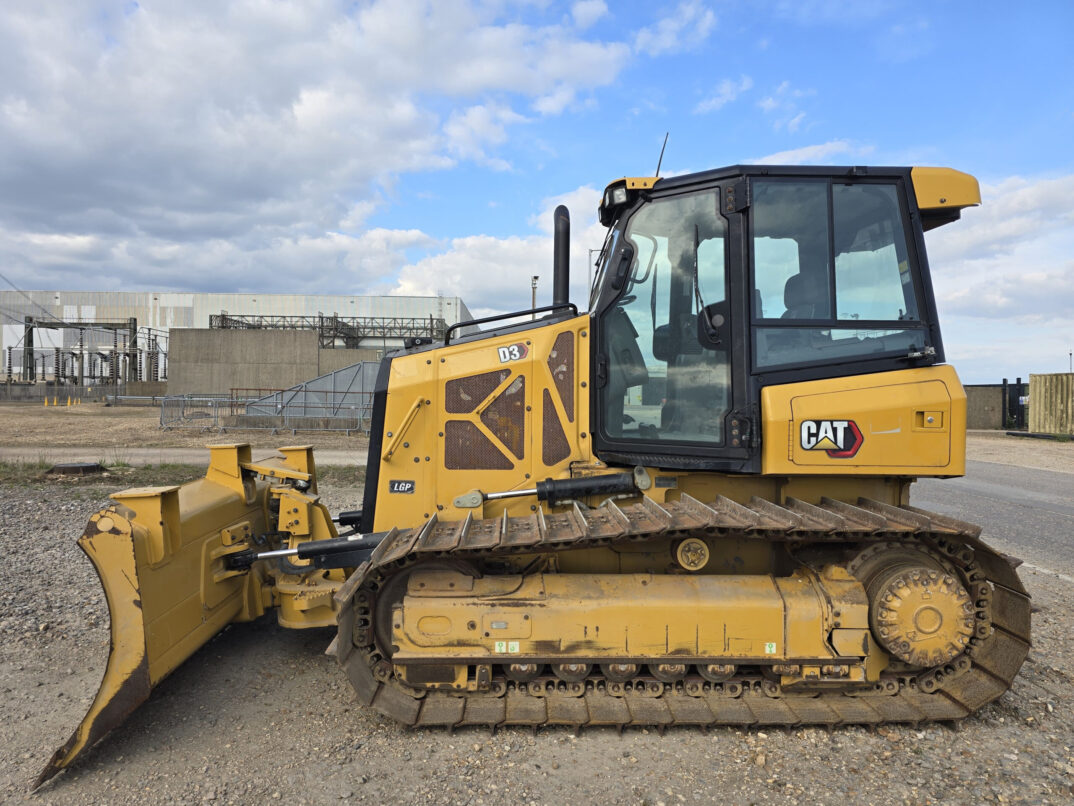

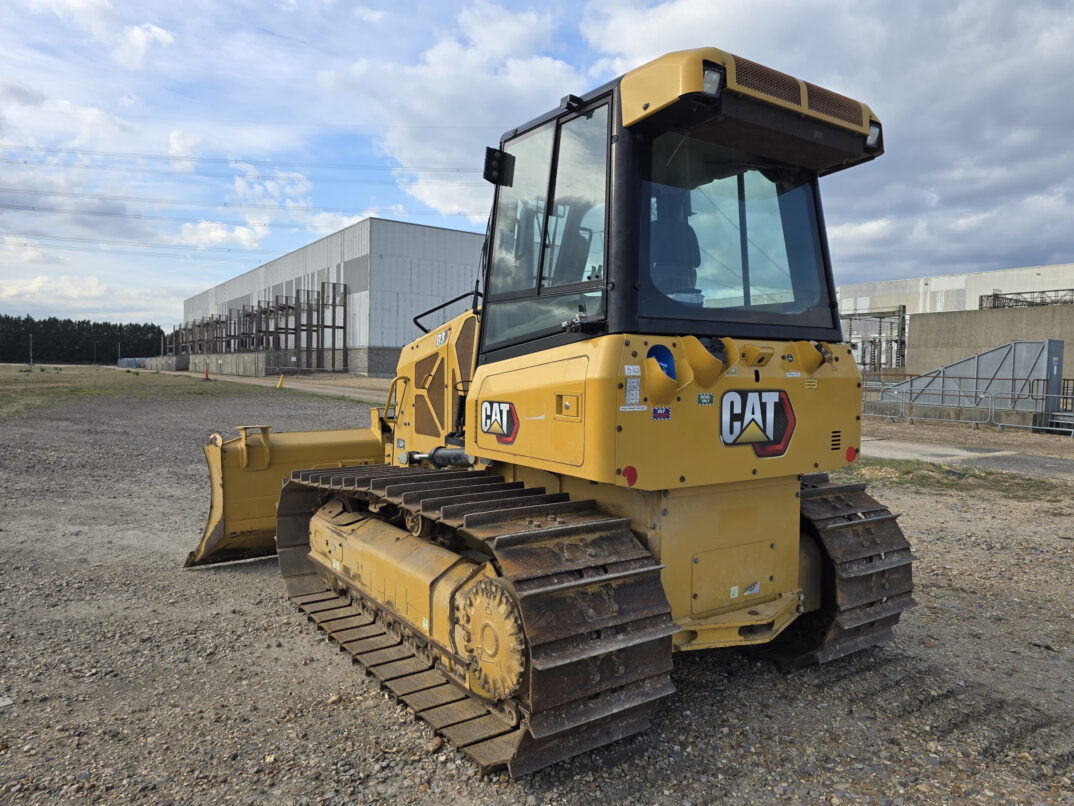

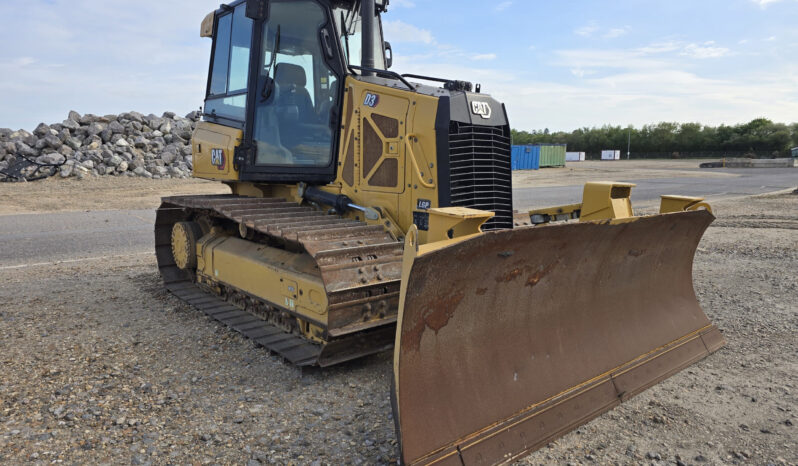

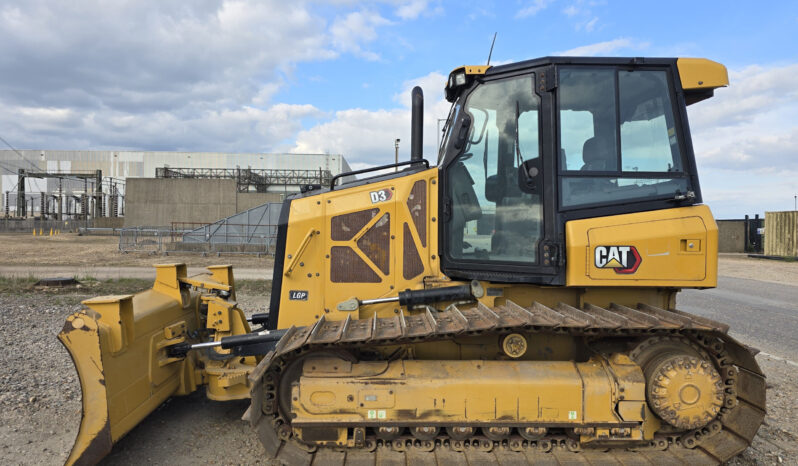

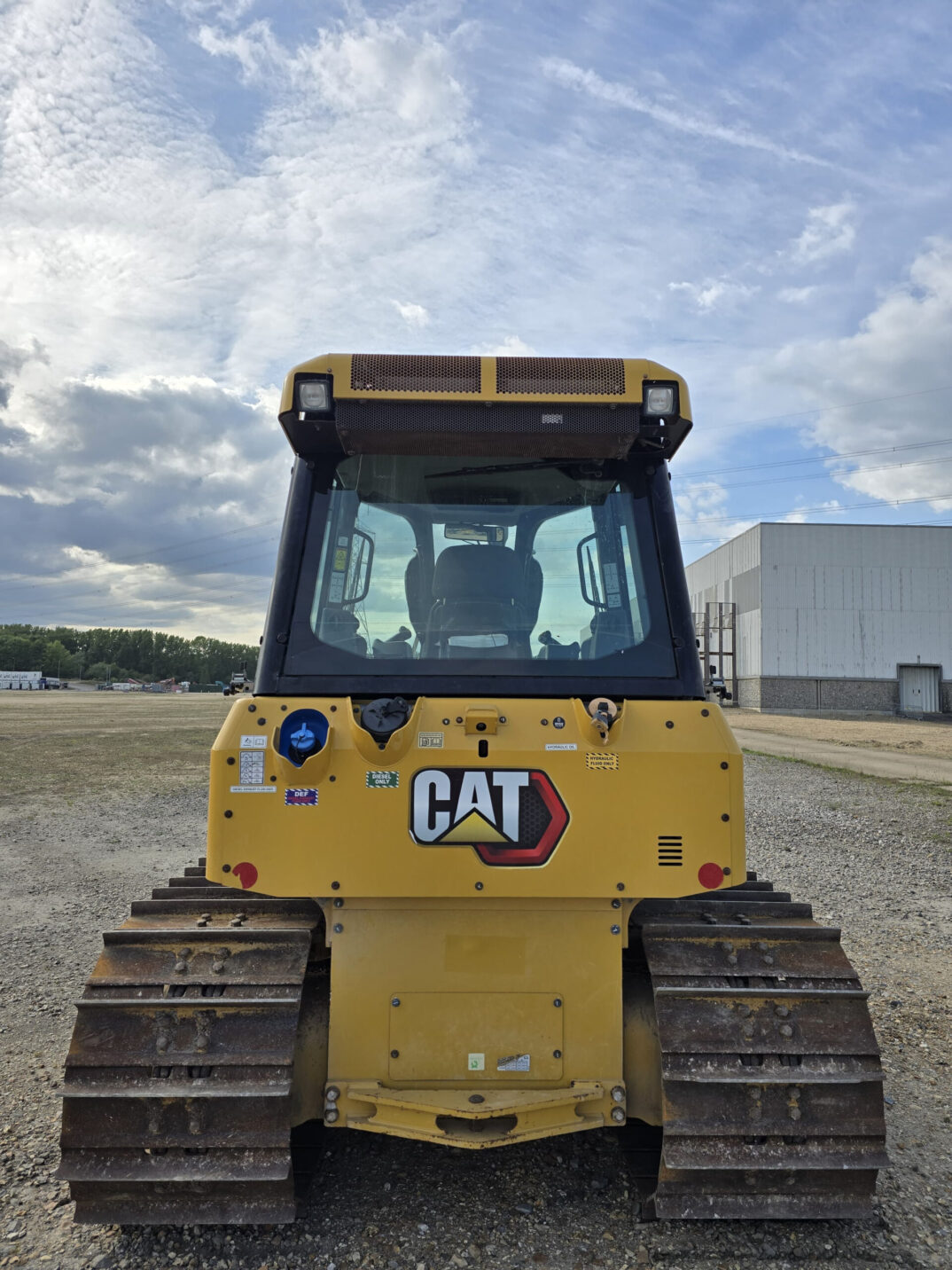

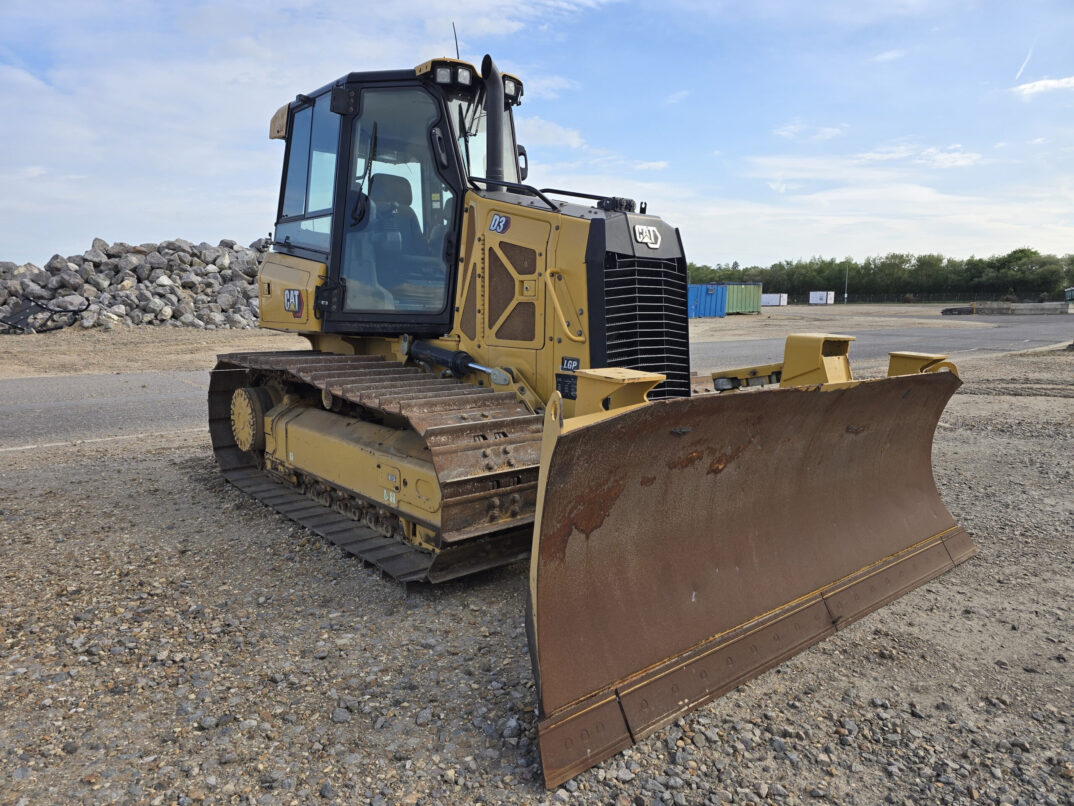

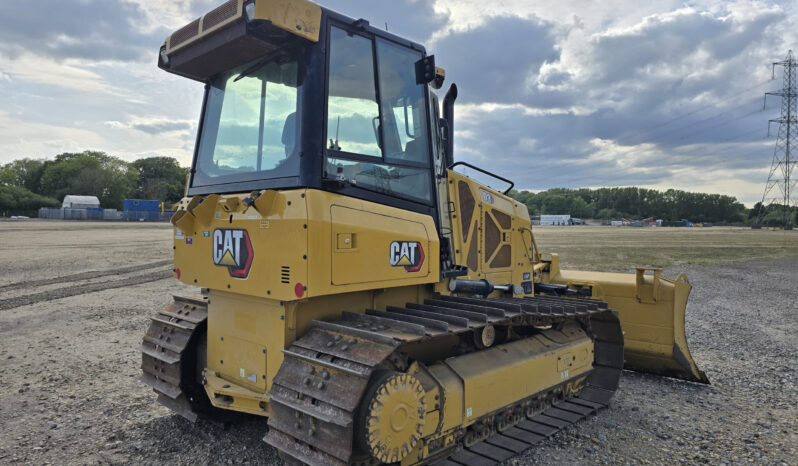

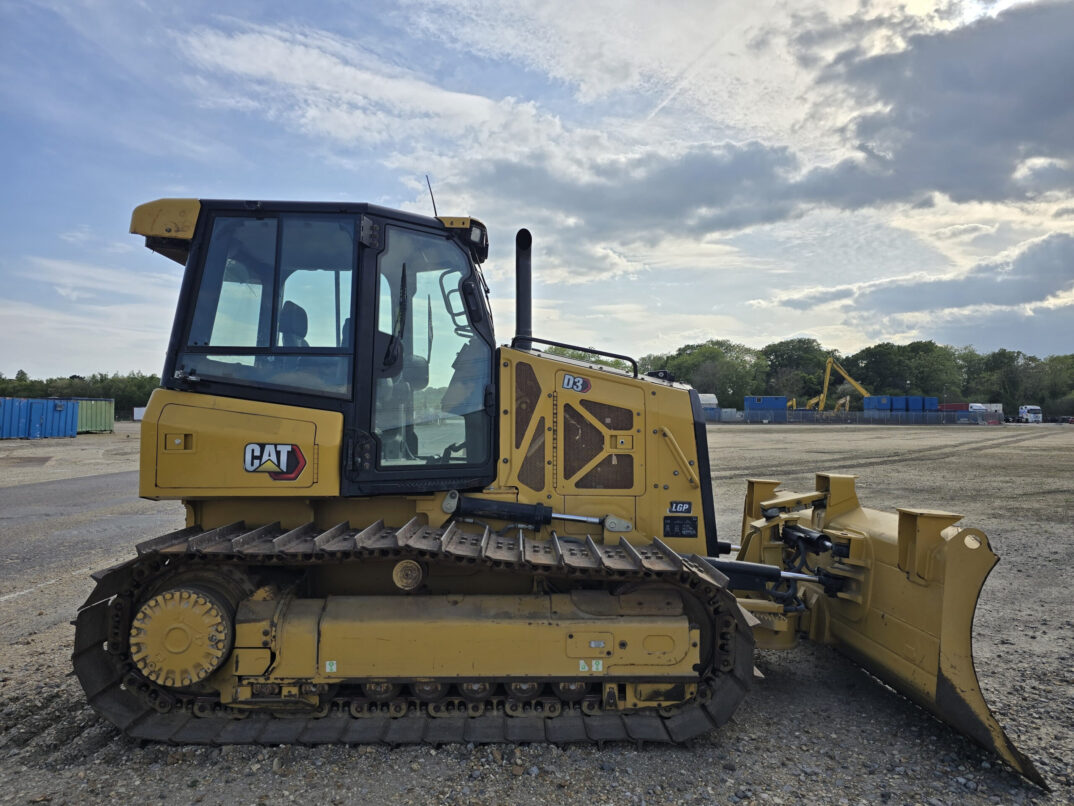

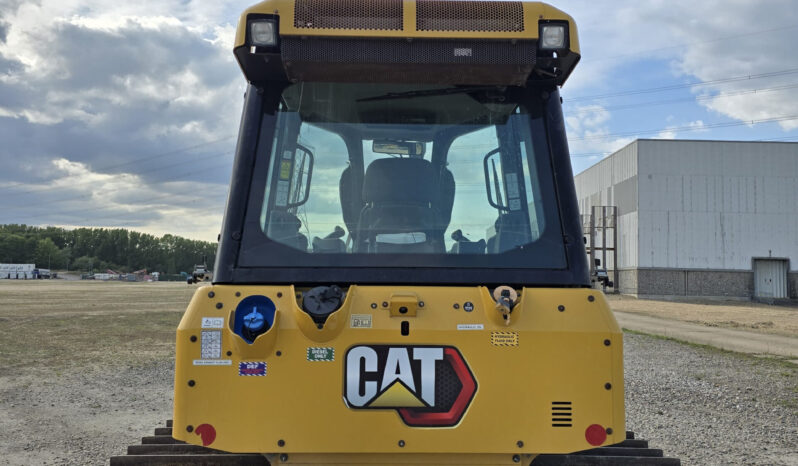

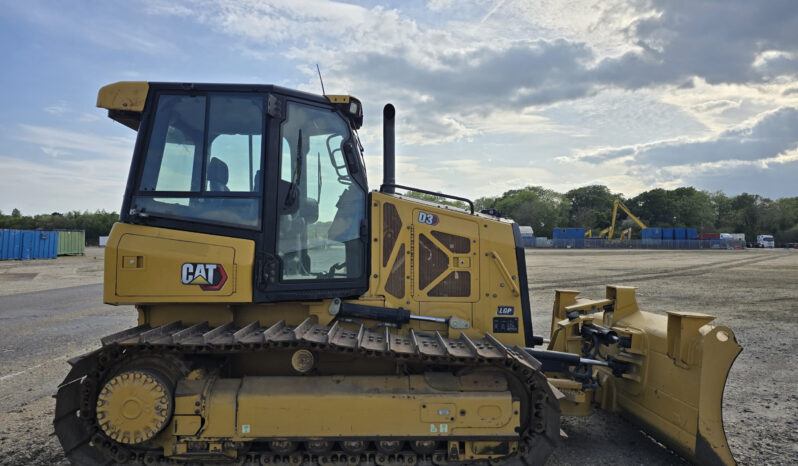

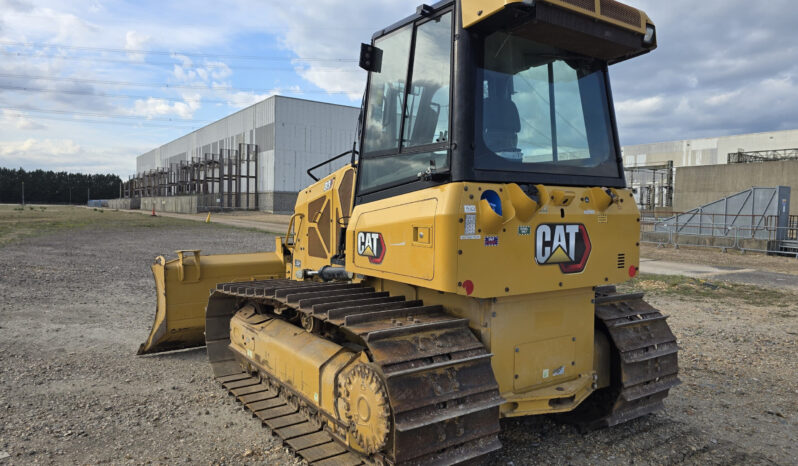

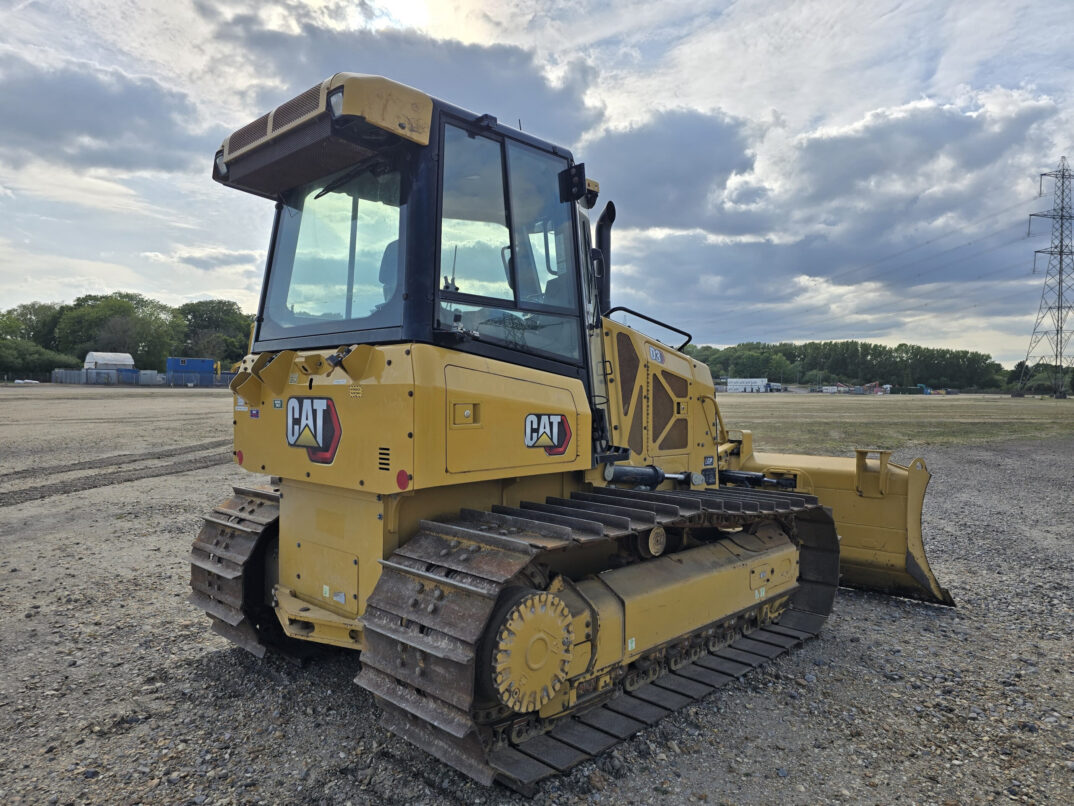

2022 CAT D3 LGP for Sale in Southampton, UK

CAT D3 LGP Weight: 9,693 KGS Hours: 2506 HP: 104
ENGINE
Blow By- Minimal- - - -
Knocking- no knocking- - - -
Air cleaners- Good- - - -
Any smoke- No smoke- - - -
Oil or fuel leaks- No leaks- - - -
General running condition- Runs well- - - - - - - TRANSMISSION
Gear change- HST works well- - - -
Steering- Responsive steering- - - -
Oil leaks- No leaks- - - -
Is the transmission noisy?- No- - - -
Controls- Good controls- - - -
General running condition- Moves well- - - - - - - UNDERCARRIAGE
Shoe width- 660mm- - - -
Shoe height- 55mm, 95%- - - -
Shoes - any wear in trailing edge- Minimal- - - -
Rail height- 100mm, 75%- - - -
Any signs of link failure?- No- - - -
Average diameter of pins and bushings- 56mm, 75%- - - -
Have pins been turned on chains?- No- - - -
Sprockets- 80mm gape, 15 - 16mm tips- - - - - - - IDLERS - UNDERCARRIAGE
Left side front idler- 50mm x 20mm, 75%- - - -
Right side front idler- 50mm x 20mm, 75%- - - - - - - TOP ROLLERS - UNDERCARRIAGES
Left side top roller- 153mm x 153mm, 90%- - - -
Right side top roller- 143mm x 143mm, 60%- - - - - - - BOTTOM ROLLERS - UNDERCARRIAGE
Roller 1- 157mm x 161mm, 60%- - - -
Roller 2- 161mm x 162mm, 60%- - - -
Roller 3- 161mm x 165mm, 60%- - - -
Roller 4- 161mm x 163mm, 60%- - - -
Roller 5- 161mm x 162mm, 60%- - - -
Roller 6- Visual only, 60%- - - -
Roller 7- Visual only, 60%- - - - - - - CAB
Cab mounts - any wear?- Good mounts- - - -
Any wiring for laser system- Yes- - - -
Back up alarm- Loud and clear- - - -
Battery isolator switch- Manual fitted- - - -
Lights- All working- - - -
Wipers- All working- - - -
Heater- Good heat- - - -

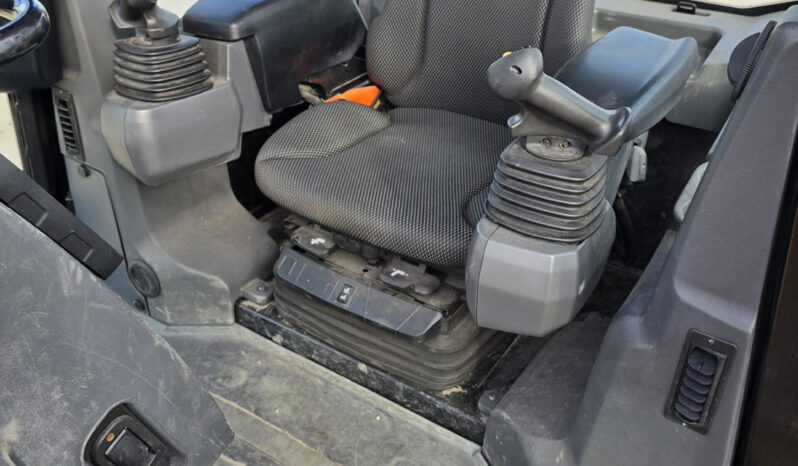

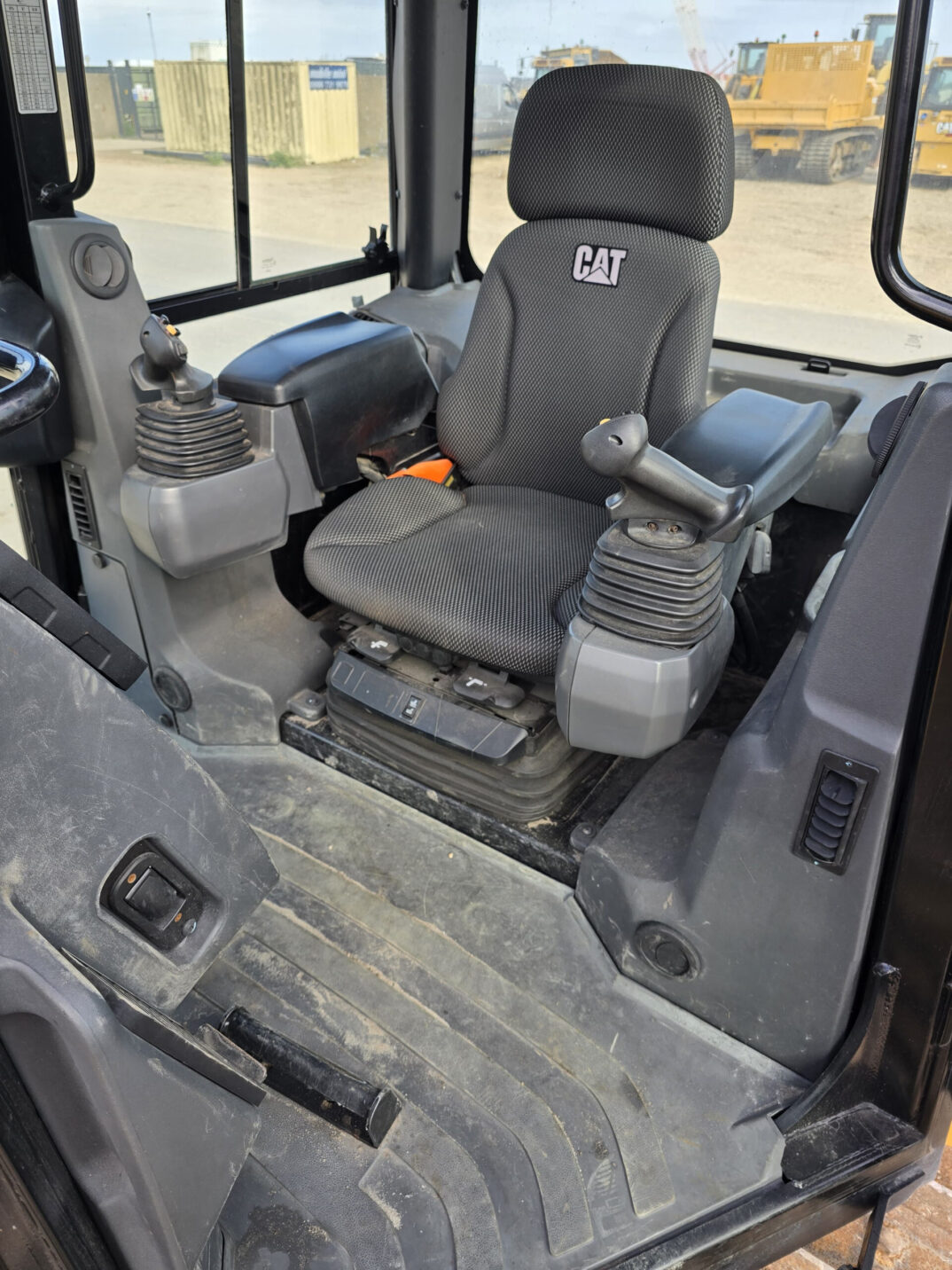

Seat condition- Good condition- - - -
Cladding condition- Good condition- - - -
Floor mat condition- No wear or tears- - - -
Seat belt- Working as should- - - -
Mirrors- Rear view only- - - -
Horn- Loud and clear- - - -
Cab mounts- Good mounts- - - -
Cab glass condition- Some wiper scuffs- - - -
Cab glass, any cracks?- No cracks- - - -
Any perspex fitted- None fitted- - - -
Steps and grab handles secure?- All fitted, undamaged- - - - - - - BLADE

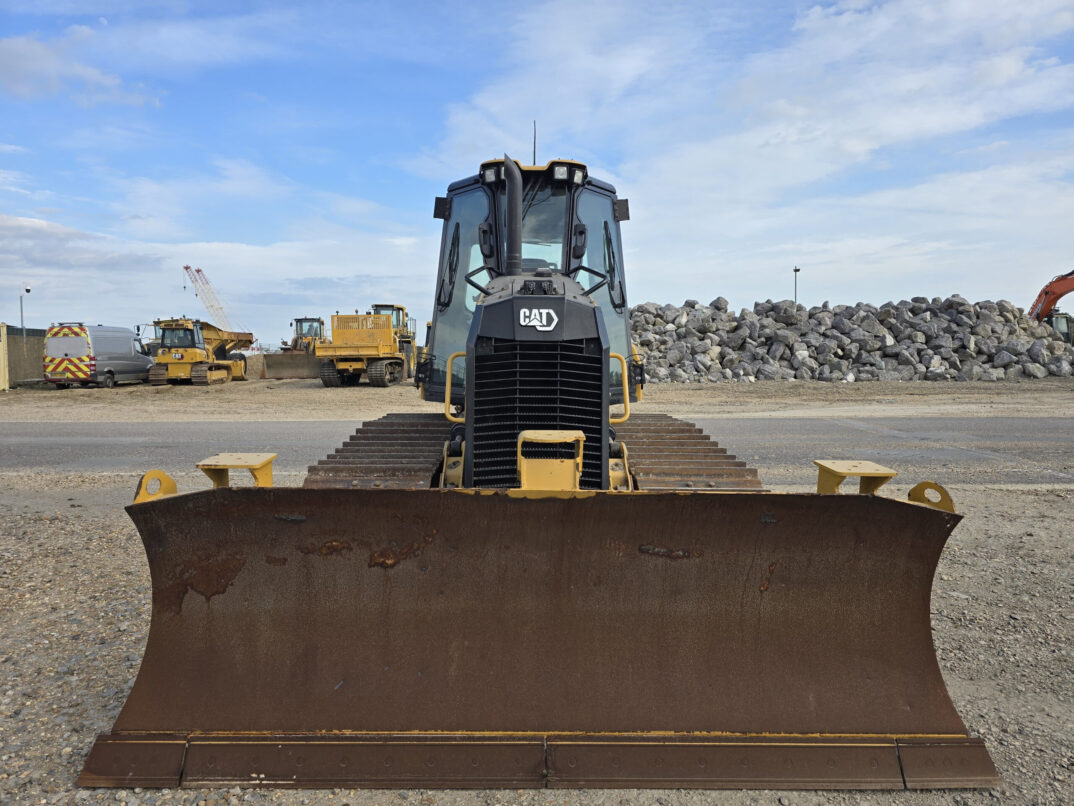

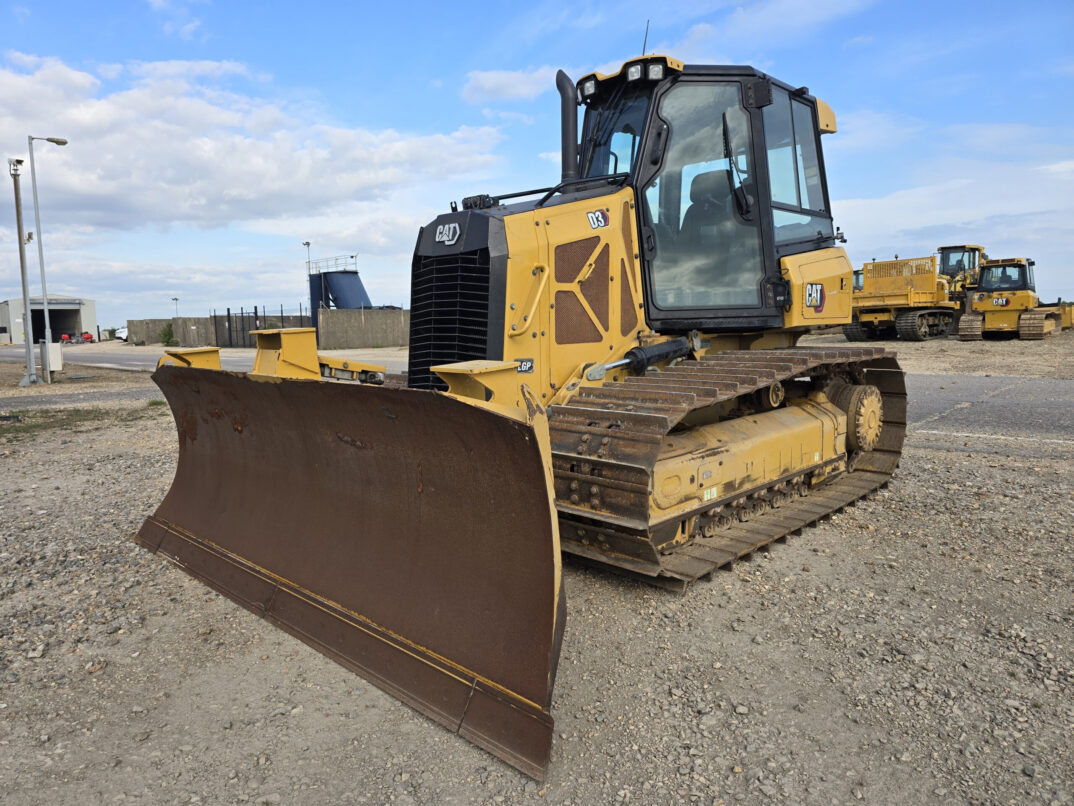

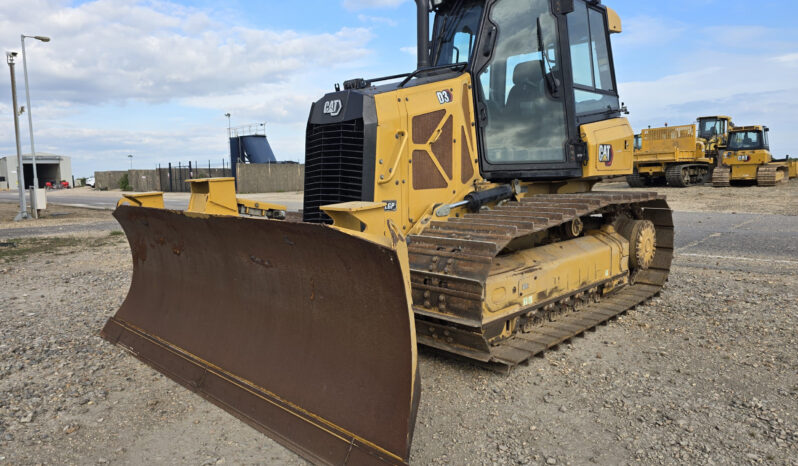

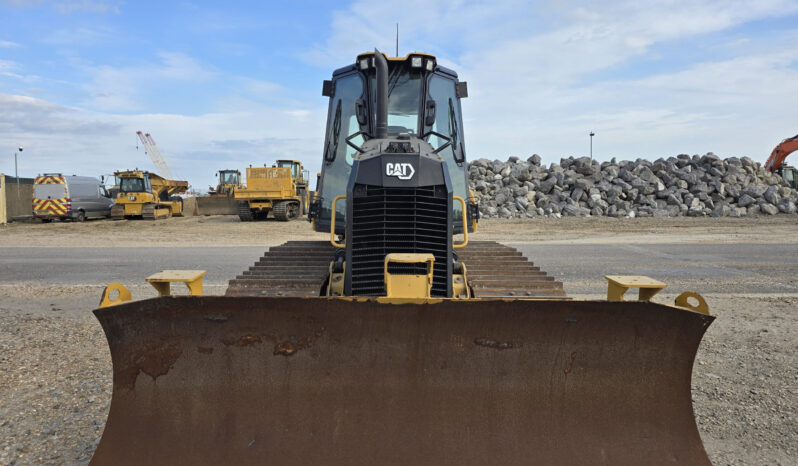

Blade type- PAT blade- - Blade width- 3215mm- - Blade height- 1030mm- - Main lift rams, wear- L/H: 1mm x 1mm, R/H: 1mm x 1mm- - Pitch rams, wear- L/H: 1mm x 1mm, R/H: 2mm x 5mm- - Tilt ram, wear- 3mm- - Link ram, wear- 2mm x 2mm- - Ball joint, wear- Trunion and bearings to be replaced- - C Frame, wear- 2mm x 2mm- - Face / moldboard- Decent, couple dents- - - -
Cutting edge condition- 50mm- - - -
Have cutting edges been turned- No- - - -
PAINT & DECALS
Any damage to panels- No panel damage- - - -
Paint condition- Fair- - - -
Any areas repainted- No- - - -
Any rust patches- Starting on edges- - - -
Condition of decals- Fair- - - - - - - DIMENSIONS- Length
Width
Height- Measurements with blade straight- 4250mm
3215mm
2900mm- Measurements with blade turned- 4890mm
2900mm
2900mm- Measurement from outside to outside of tracks-
2415mm- - Measurements with blade straight- Length: 4250mm
Width: 3215mm
Height: 2900mm- Measurements with blade turned- Length: 4890mm
Width: 2900mm
Height: 2900mm- Measurement from outside to outside of tracks- Length:
Width: 2415mm
Height:
